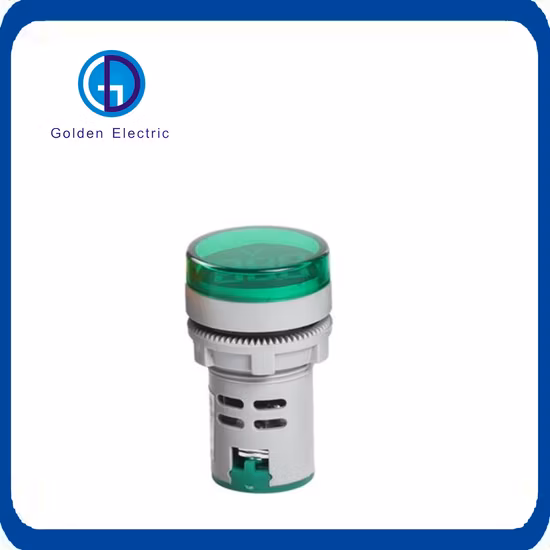

Mini Voltmeter, Ammeter, Hz Current Frequency Panel Meter Indicator Digita 22mm LED Digital Display Power Signal Light

Basic Info

After-sales Service	24hours
Warranty	1 Years Warranty
Installation	General Installation Meter
Display	Digital
Usage	Meter for Industry and Home Use, Standard Electric Energy Meter, Multi-Functional Energy Meter, Maximum Demand Meter, Multi-rate Watt-hour Meters, Watt-Hour Meter, Reactive Energy Meter, Prepayment Meter
Theory	Electronic Meter
Power Source	AC and DC
AC Voltmeter Type	Electric
Customized	Customized

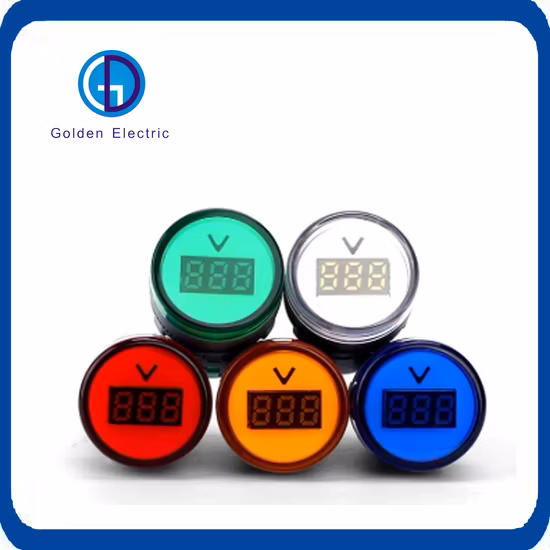

Color	Red/Orange/Green/White/Blue
Voltage Measuring Range	AC60-500V
Current Measuring Range	1-99.9A
Frequency Measuring Range	20-75Hz
Shape	Square
Opening Size	22mm
OEM	Yes
Sample	Availiable
Dimensions	Mini
Insulation Resistance	≥2mΩ
Display Type	Digital Only
Operating Temperature	-25ºC~+55ºC
Protection Degree	The Head IP65. IP67 Is Available on Request
Transport Package	Standard Export Package
Specification	22mm
Trademark	Golden or netural or customer brand
Origin	China
HS Code	8537109090
Production Capacity	5000000PCS/Month

Product Description

Digital Indicator Lamp

Voltmeter/Ammeter/Frequency Meter

3in1 Function with Current Transformer1)Working Condition1. ambient temperature:-25ºC-+55ºC,2. relative humidity:≤98%,3. nomally workable when vibration frequency is 2-80Hz with acceleration of.0.7g4. pollution degree is 3, installation g roup is III5. "TH" marked can work at damp-heat environment.2)Technic data1.Power frequency withstand voltage:2.5kv/1min(effective AC value),2.insulation resistance:≥ 22MΩ,3.Allowable voltage fluctuation: ± 20%,4.Continuous operating life: ≥30000H.5.Brigtnss: ≥100cd/m2,6.CTI≥600,7.Protection degree of the head IP65, IP67 is available on request,8.Applying frequency:AC20-75Hz.ApplicationIt can be used as signal indication, warning signal, accident signal and other signals in the line of electric power, telecommunication, machine tool, ship, textile,printing and mining machinery.

Product Parameters

AC Voltmeter

Product Name	Digital AC Voltmeter
product specification	AD16-22DSV
Hole Size	22mm
Color	Red/Orange/Green/White/Blue
Rated power	0.5W
Voltage range	12V-500V AC
Ambient temperature	-25ºC-+65ºC
Relative humidity	<=98%
Display method	LED bright digital display
tolerance scope	+-5V

DC Voltmeter

Product Name	Digital DC Voltmeter
product specification	AD101-22VM
Hole Size	22mm
Color	Red/Orange/Green/White/Blue
Rated power	0.5W
Voltage range	5V-60V DC
Ambient temperature	-25ºC-+65ºC
Relative humidity	<=98%
Display method	LED bright digital display
tolerance scope	+-5V

AC frequency meter

Product Name	Digital AC frequency meter
product specification	AD101-22HZ
Hole Size	22mm
Color	Red/Orange/Green/White/Blue
Rated power	0.5W
Voltage range	AV24V-500V
Ambient temperature	-25ºC-+65ºC
Frequency Range	0-99Hz
Display method	LED bright digital display
product weight	18.5g

AC ammeter Double display voltage and current meter

Product Name	Digital AC Voltmeter	Measure current	0-100A	Product Name	Digital display voltage ammeter	Measure current	0-100A
product specification	single phase AC	Use voltage	20-380V	product specification	single phase AC	Use voltage	AC60-380V
Hole Size	22mm	refresh rate	About 200ms/time	Hole Size	22mm	refresh rate	About 200ms/time
Color	Red/Orange/Green	Instructions	A load line goes through the transformer	Color	Red/Orange/Green	tolerance scope	+-1A;+-5V

Noted:Can not used in the electric environment with frequency conversion , high frequency, strong harmonic interference signal.

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you for understanding.
